Tension Disc in a Sewing Machine
The short answer
The tension disc in a sewing machine only grips the top thread correctly when the presser foot is up during threading. This single detail causes more tension complaints than the dial setting itself.
Last updated September 2026
What's covered10
- What the tension disc actually is
- Why the presser foot has to be up
- How to check if thread is seated correctly
- Cleaning the tension discs
- When the disc itself needs replacing
- How disc tension interacts with fabric and thread choice
- A quick visual check before you thread
- Parts that work with the tension disc in a sewing machine
- Signs the tension disc in your sewing machine is the problem
- Related reading
The tension disc in a sewing machine is the real part behind the number on the tension dial. Once you understand how it works, most tension problems make more sense than any chart alone can explain.
What the tension disc actually is

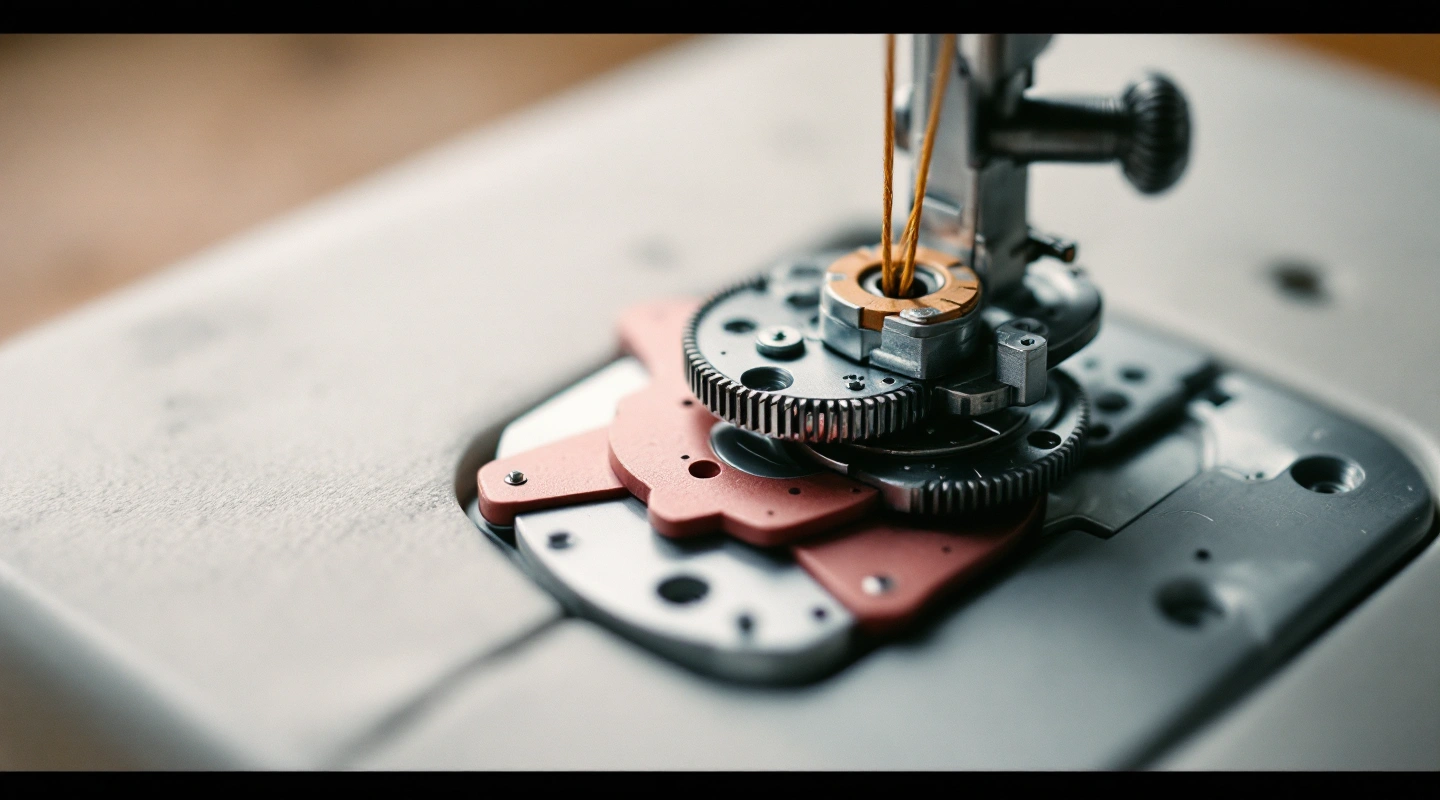

Inside the machine's tension unit sit two small metal discs. A spring presses them together, and the tension dial sets how hard. The top thread passes between these discs on its way to the needle. More pressure between the discs means more drag on the thread as it feeds.
Less pressure means less drag. This squeeze is the whole basis of top thread tension. Everything the dial does is change how hard those two discs press together.
Why the presser foot has to be up
On most machines, raising the presser foot opens the tension discs a little. That leaves a gap the thread can slide into while you thread. If the foot is down while you thread, the discs stay shut. The thread then rides outside them instead of sitting between them.
The machine will still sew. But the top thread gets no real tension, and the stitches look just like a tension dial problem. In this case the dial setting doesn't matter at all.
How to check if thread is seated correctly
Thread the machine with the presser foot raised. Then lower the foot and gently pull the top thread just above the needle. You should feel a steady drag.
Raise the foot and pull again. The thread should now slide out almost freely, because raising the foot opens the discs. If the thread feels the same both ways, it is sitting outside the discs. The same is true if it pulls freely with the foot down at any dial setting. Rethread with the foot up and test again.
Cleaning the tension discs
Lint, bits of thread and old oil can build up between the discs over time. That is most likely on a machine that sees heavy use without regular cleaning. This buildup changes the real tension, even when the dial and the threading are both correct.
Most manuals explain how to reach the tension unit for cleaning. With the presser foot up, run a folded piece of card or a cleaning tool gently between the discs. That clears most buildup without taking anything apart.
When the disc itself needs replacing
After years of heavy use, tension discs can wear unevenly, or a spring can weaken. Then the tension no longer responds to the dial in a steady way. This is wear on the parts, not a threading or cleaning problem. At that point, take the machine in for service. Don't keep chasing a setting that used to work and no longer does.
How disc tension interacts with fabric and thread choice
The same disc setting gives different real tension depending on what feeds through it. A thicker thread fills more of the gap between the discs. So it meets more drag at the same dial number than a fine thread. A fabric that drags as it feeds adds drag on top of what the discs apply.
That is part of why a setting that worked well on one project can look wrong on the next, even if no one touched the dial. So treat every new fabric and thread pairing as worth a quick test seam. Don't assume an old setting will carry over.
A quick visual check before you thread
Before you thread, take a quick look at the tension discs themselves. On most machines you can see them once you know where to look, often under a small cover near the top thread guide. Check for lint, a stray bit of thread or other debris caught between them. This takes seconds. It heads off a surprising number of tension problems before they start, most of all on a machine that has sat unused or uncleaned for a while.
Parts that work with the tension disc in a sewing machine
The discs do not work alone. On most home machines, the top tension unit has three parts that act together:
| Part | What it does | What goes wrong |
|---|---|---|
| Tension discs | Squeeze the top thread to add drag | Lint or a stray thread holds them apart |
| Tension spring and dial | Set how hard the discs press together | A weak spring gives loose stitches at every setting |
| Check spring (small wire hook) | Takes up slack as the needle goes down and comes back up | A bent or broken check spring causes loops and uneven stitches |
| Presser foot lever | Opens the discs when raised, closes them when lowered | Threading with the foot down leaves the thread outside the discs |
Scroll for more →
Many machines hide the discs behind the front cover, so you only see the thread path and the dial. Your manual shows where the thread should sit.
Signs the tension disc in your sewing machine is the problem
- Top thread loops underneath the fabric even after a full re-thread with the foot up.
- The dial changes nothing, from the lowest number to the highest.
- Tension feels fine with the foot up and the same with the foot down (it should feel firmer with the foot down).
- Stitch quality changes in the middle of a seam with no change to thread or fabric.
The last two point to lint or a worn spring. Clean first. If nothing changes, book a service.
Related reading
See Sewing Machine Thread Tension for the fuller picture on fixing tension. See Sewing Machine Tension Dial for how to read and adjust the dial once you know the threading is right.
FAQ
What does the tension disc actually do?
It's a pair of metal discs that squeeze the top thread as it feeds through, controlling how much resistance the thread meets. The tension dial adjusts how tightly these discs press together.
Why does the presser foot position matter for the tension disc?
Raising the presser foot opens the discs so thread can seat fully between them during threading. If you thread with the foot down, the thread sits outside the discs and the machine has no real tension control over it.
Can a dirty tension disc cause problems even with correct threading?
Yes. Lint, thread fragments and old oil can build up between the discs over time, changing how much resistance they apply even when threading and settings haven't changed.
