Machine Problems

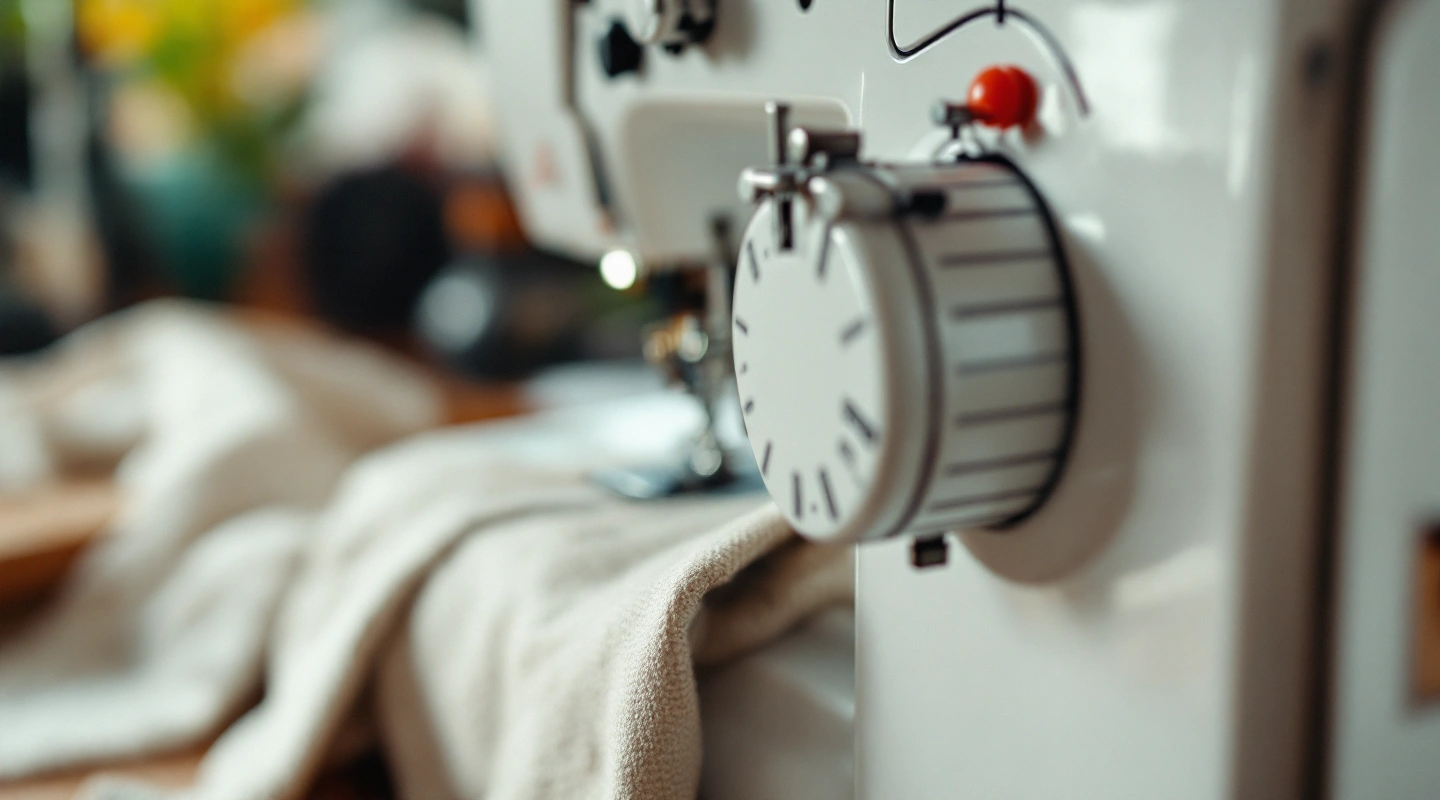

Sewing Machine Tension Dial: How to Use It

A sewing machine tension dial looks simple. It is just one dial with numbers on it. But if you understand what those numbers mean, and when to trust them, you will save yourself real frustration on future projects.

What the dial actually controls

The sewing machine tension dial sets how hard the top tension discs squeeze the top thread as it feeds through. A higher number usually means more grip, which is tighter tension. A lower number means less grip, which is looser tension. The exact number scale varies by maker and by model. That is why "set it to 4" from a forum post doesn't carry over well from one machine to another.

Finding your machine's default

Most manuals list a default starting tension for general sewing. It is usually a middle value on the scale that model uses. The factory sets this default for medium-weight woven fabric and all-purpose thread. It is a place to start, not a fixed right answer. You will move away from it for different fabric and thread pairings.

When turning the dial is the right move

Reach for the tension dial only after you rule out the two more common causes of tension trouble. Those are wrong threading and a bad needle. If a full rethread and a fresh needle don't fix loopy or puckered stitches, then the dial may really need a change. Most often that is because you have switched to a much heavier or lighter fabric or thread than on your last project.

How to adjust it correctly

1. Note the current number before changing anything.
2. Turn the dial one number in the direction that addresses your symptom (lower the number if bobbin thread shows on top or the seam puckers; raise it if top thread loops show underneath or the stitches look loose).
3. Test on a scrap of your actual project fabric.
4. Repeat in single-number steps until the stitch looks balanced on both sides.

Avoid big jumps. If you turn the dial several numbers at once, it is much harder to find the right setting. You can also create a new problem while you are still chasing the old one.

Reading the dial's markings correctly

Some tension dials use plain numbers. Others use numbers plus small dashes or dots for finer steps between the whole numbers. Check your manual to learn what each mark means on your model.

Don't assume a half step is impossible. Many machines allow finer control than the visible numbers suggest. That is useful once you are close to the right setting and only need a small nudge, not a whole number's worth of change.

Digital tension settings

Some computerized machines replace the dial with a digital tension display or an automatic tension system. The same rules apply there. Make small changes. Change one thing at a time.

Test each change on scrap fabric. Automatic tension systems still sometimes need a manual override for unusual fabric or thread. So check your manual for how to reach manual tension, even on an automatic model.

Why the dial gets blamed too often

The tension dial is the most visible control on the front of a sewing machine, and the one that looks easiest to change. So it is the first thing beginners reach for when a stitch looks wrong. In practice, threading mistakes and needle problems cause most of the symptoms that look like tension trouble.

The dial itself is rarely at fault once a machine is set up right and left alone. Make a habit of ruling out threading and the needle first. It will save you a lot of confused, pointless dial turning.

Marking your default setting

Once you confirm your machine's default tension number in the manual, mark it somewhere that lasts. A small sticker or a note taped inside the machine's cover works well. Manuals get lost, and memory fades after a few months.

That note pays off if you ever wonder whether the dial has drifted from where it should be. It also helps if someone else used the machine and left it on a strange setting. Having that reference point saves you real time when you troubleshoot.

What to do if adjusting the dial doesn't help

Say you have made small, careful changes to the tension dial and tested each one on scrap fabric, and none has worked. Then stop turning the dial and go back to the more common causes. Rethread the machine completely. Replace the needle.

Clean the lint from the bobbin case and the tension discs. A dial that makes no difference at any setting can also point to a fault in the tension parts themselves. At that point, a professional service is a more reliable next step than more guessing.

Tension dial habits worth building

A few habits keep tension fixes from turning into guesswork. Change one thing at a time, and test after each change. Keep a small notebook of the settings that worked for each fabric and thread pairing.

Don't keep turning the dial once you have already ruled out threading and the needle. Sewists who build these habits early spend far less time chasing tension problems on later projects. By then they have a mental or written reference for their own machine.

What a stuck or unresponsive dial means

Sometimes turning the tension dial makes no visible change to the stitch at any setting. That is a different problem from a wrong setting. It suggests the tension parts are not working as they should. A broken spring, a worn disc or lint packed so tight that the discs can't move may be the cause. This is one of the clearest signs that the problem has moved from "adjust the settings" to "the machine needs a professional." No amount of turning the dial fixes a part that is stuck.

Sewing machine tension dial moves by symptom

Use this as a quick guide once you have ruled out threading and the needle. Each move is one step on the dial, then a test seam.

Scroll for more →

If one full step goes too far, many dials allow half steps between the numbers. Go back halfway and test again.
